PL18 - COMBO FOR 2 DOORS FULL SOFT CLOSE
PL18 – Wardrobe Sliding System

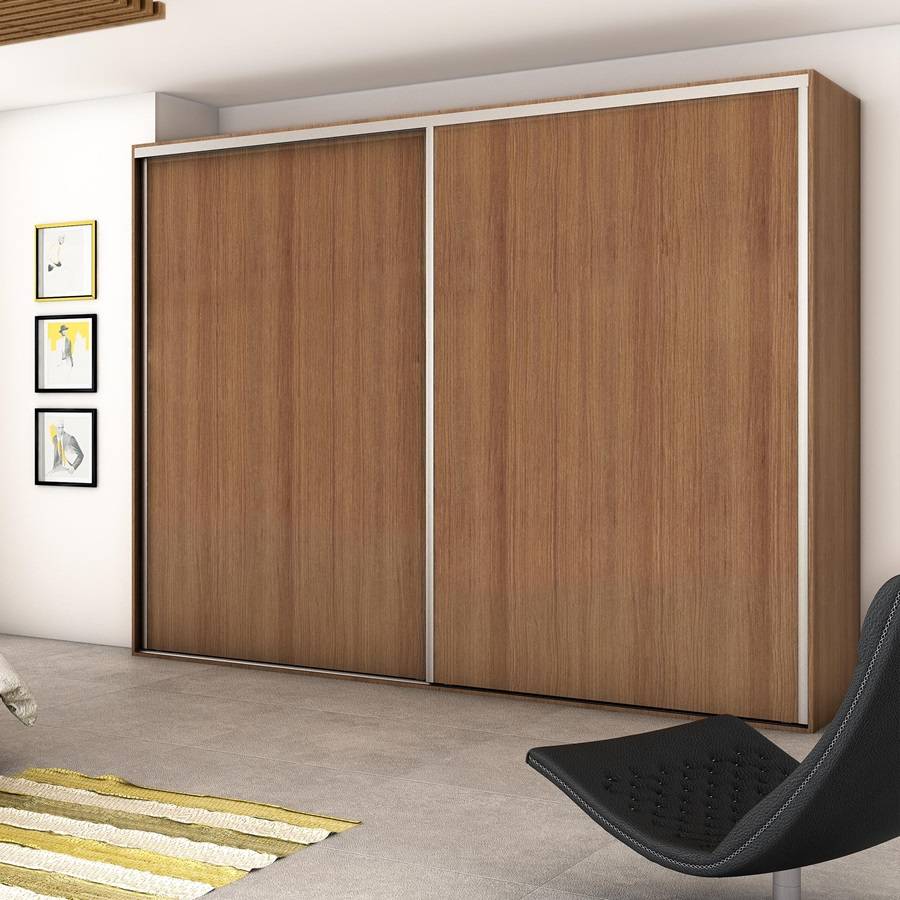

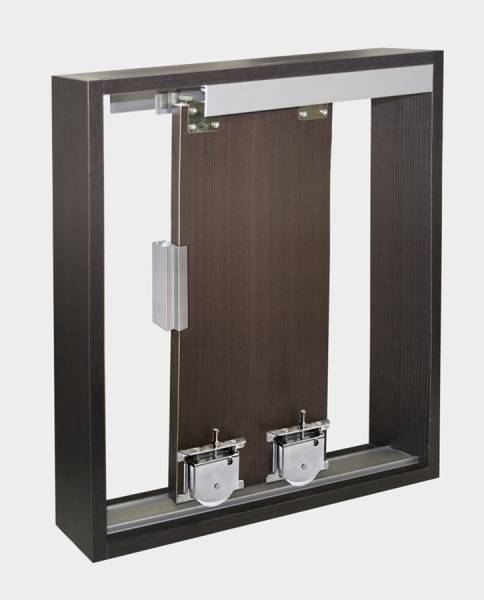

PL18 is a bottom rolling sliding door system for wardrobes. There is no
hanging load on the ceiling as the weight of the door rests on the bottom
rollers and track. Suitable for 18mm wooden panels and 4mm glass.
Features:
- Aluminium
top and bottom track
- Aluminium
handles and horizontal U profiles
- Optional
midrail H profiles
- Handles
length: 3000mm
- Door
filling: 18mm wooden panel and 4mm glass
- Max
door weight: 50kg
- Soft
opening and closing as standard
- Quick
and easy installation
The kit includes:
·

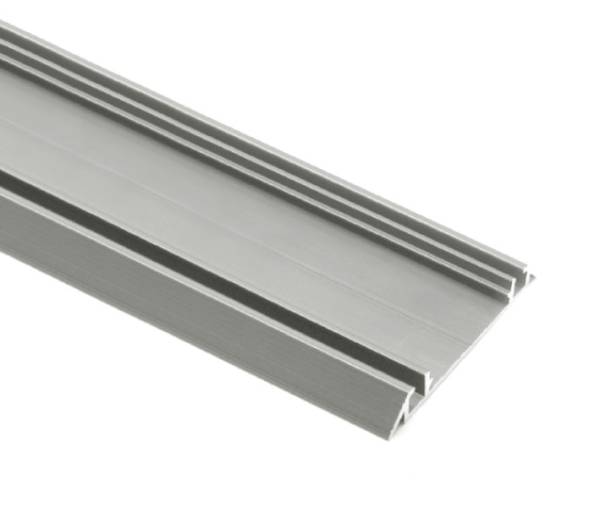

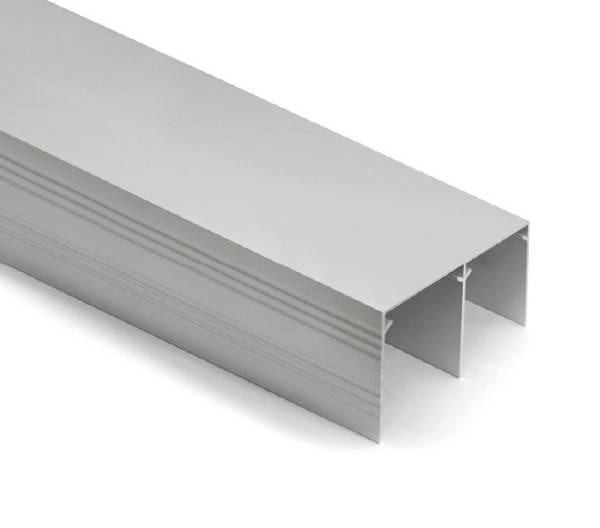

2000mm Top & bottom aluminium track
·
2 sets of top guide ball bearing rollers
·

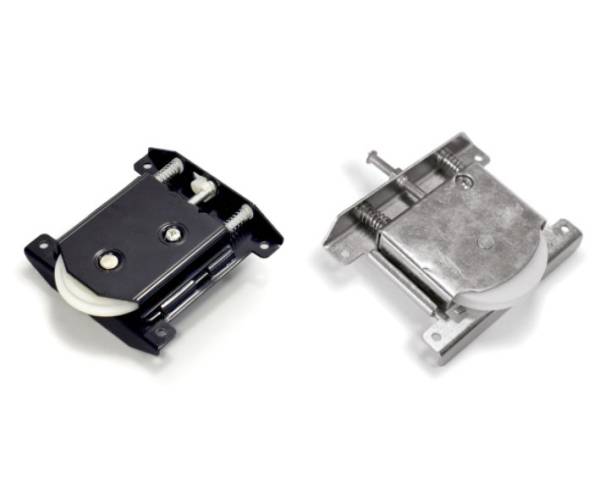

2 sets of bottom rollers (load bearing)
·

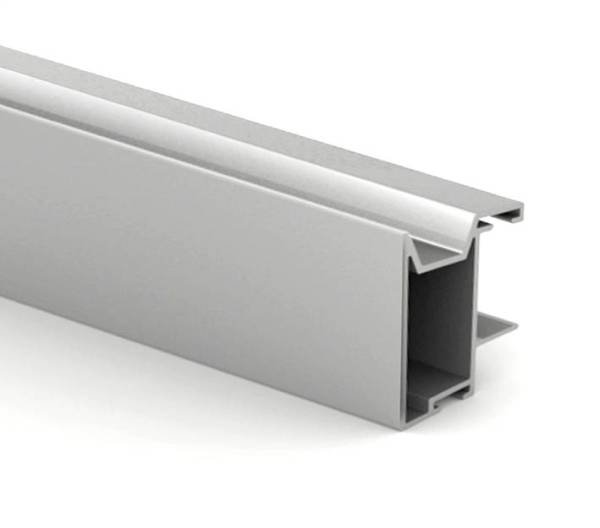

4 aluminium vertical handles
·

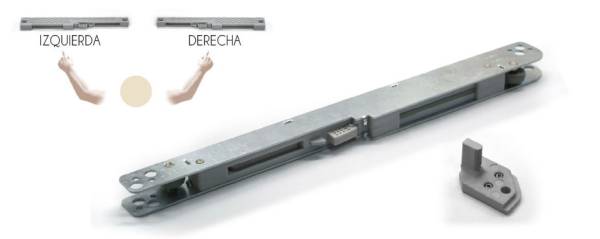

2 sets of soft closing dampers
·
Anti-dust brushes
