PIVOT HINGE CAB-R 3D MATT CHROME

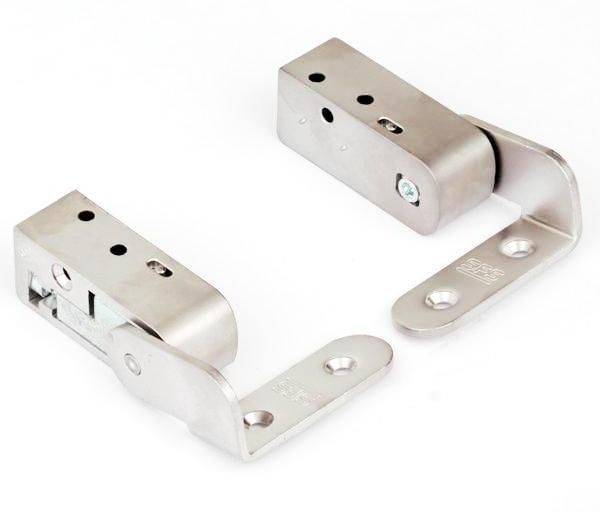

CAB-R 3D Pivot Hinge
Description

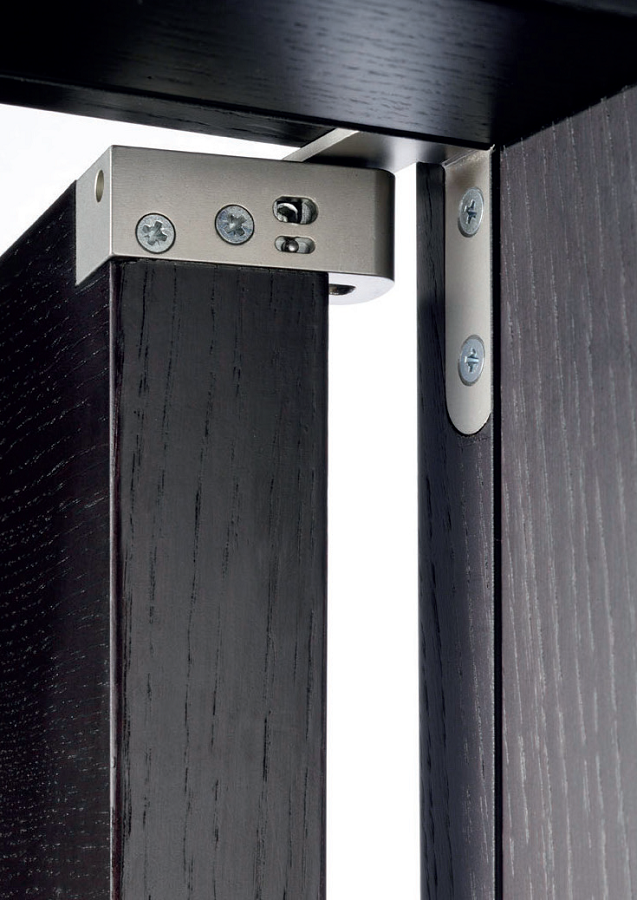

CAB-R 3D - Adjustable pivot hinge for internal doors
Application
• For timber flush fit doors without milling
• Load capacity per pair 80 kg
• Load capacity per pair 80 kg
• Adjustable 0/+3mm in height,+/-1,5mm horizontal and +/-2mm gasket pressure
• For panels between 40 and 45 mm
• For panels between 40 and 45 mm
Features and Benefits
- Adjustable 0/+3mm in height,+/-1,5mm horizontal and +/-2mm gasket pressure
- Door panel and frame reversible
- Self lubricating bushes, which ensure smooth and maintenance free movement over time
- 200.000 cycle test
- For panels between 40 and 45 mm
